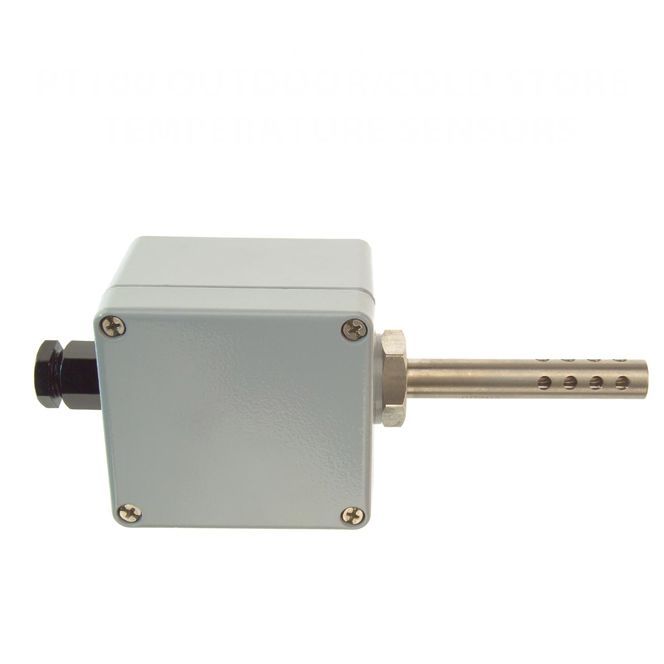

Pt100 Temperatursensoren fr den Auenbereich / Khlhaus - Typ PRT - Einzelelement
Währung ändern
SKU
XE-3673-001
190,97 €
159,14 €
- Buy 2 - 14 for 150,13 € 125,11 € each
- Buy 15+ for 130,14 € 108,45 € each
Einzelnes 4-adriges Element, das den Anschluss an jedes Pt100 2-, 3- oder 4-Draht-Instrument ermglicht.
Pt100 (100 Ohm @ 0C) nach IEC 751, Klasse B, 4-Draht-Einzelelement
Leistungsbeschreibung
| Allgemeine Beschreibung | Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing |
|---|---|
| Sensorart | single element, Pt100 (100 Ohms @ 0°C) to IEC 751, Class B |
| Gehäuse | Painted Die-Cast Aluminium Housing L80 x W74 x H54mm |
| Element | Pt100, class B to IEC 751 |
| Mantelmaterial | Perforated 316 stainless steel probe, 12.7mm x 75mm |
| Gland | M20 cable entry gland |
| Max. Temperatur | 150°C |
| Mindest. Temperatur | -50°C |
| IP Rating | IP67 |
| Transmitter | Optional transmitter device has an ambient operating range of -40 to +85°C |
| Anzahl der Drähte | 4 |
