Typ K PVC isoliertes flaches Thermoelement-Kabel / Draht (IEC) 13/0,2 mm
Währung ändern

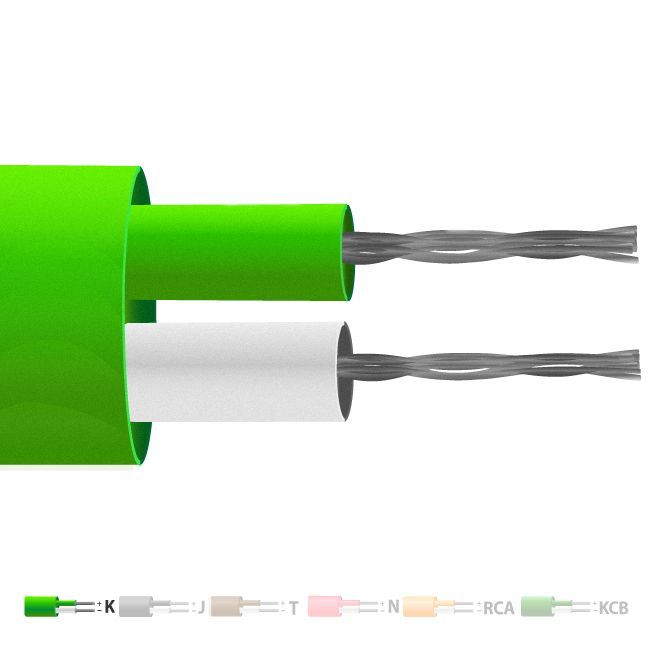

Thermoelement-Kabel / Draht (IEC) Typ K PVC-isoliertes Flachpaar
Das Kompensierungskabel hnelt der thermoelektrischen Eigenschaft des jeweiligen Thermoelements ber einen begrenzten Umgebungstemperaturbereich, typischerweise 0 bis 80C. Da diese Kabel aus kostengnstigen Materialien gefertigt sind, knnen bei Anlageninstallationen im Vergleich zum Verlegen eines echten Thermokoppel-Verlngerungskabels Kosteneinsparungen erzielt werden.
Technische Daten
| Allgemeine Beschreibung | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Kabellänge | 10, 25, 50, 100 or 200m |
| Kabelart | Flat pair construction |
| Kern / Stränge | 13/0.2mm |
| Leiterquerschnitt 13 / 0,2 (mm2) | 0.408 |
| Außenfarbe | Green |
| + Farbe | Green |
| - Farbe | White |
| Draht ablassen | No |
| Dämm Material | PVC Insulated |
| Loop Resistance 13/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatur | 105°C |
| Mindest. Temperatur | -10°C |
| + Dirigentin | Nickel Chromium |
| - Dirigentin | Nickel Aluminium |
| Bildschirm | No |
| Normen erfüllt | Colour code (cores & jacket) to IEC-584-3 |
| Thermoelementtyp | K |
| Toleranz | Class 2 |
Labfacility Thermocouple Cables
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 200m, 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go. Find out more on https://www.labfacility.com
Labfacility - Company Overview Presentation
Labfacility are the UK’s leading manufacturer of Temperature Sensors, Thermocouple Connectors and associated Temperature Instrumentation and stockists of Thermocouple Cables. The Company has been trading since 1971 and is ISO 9001 accredited. We have two UK sites – West Sussex and South Yorkshire and export to over 85 countries, Shipments are made to world-wide destinations on a daily basis. In addition to the stocked items, Labfacility also offers bespoke Temperature Sensors. We are specialists in the design and manufacture of custom-built temperature sensors at our 18,000 square foot Yorkshire plant located in Dinnington. We also offer a wide range of components and fittings for sensor installation. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
