Standard Thermoelement Connector Duplex-Sockel JS-E-FD Typ E JIS
Währung ändern
SKU
XE-9367-001
19,04 €
15,87 €
- Buy 2 - 9 for 13,45 € 11,21 € each
- Buy 10 - 99 for 11,44 € 9,53 € each
- Buy 100+ for 10,76 € 8,97 € each

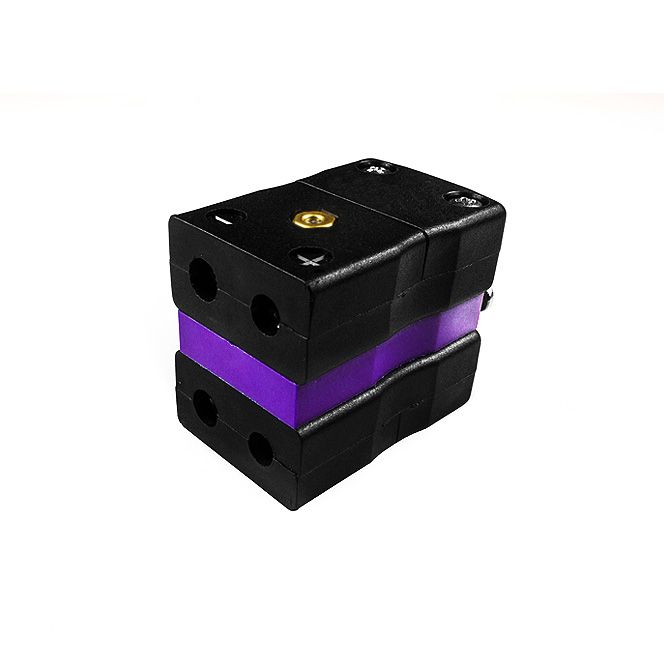

Standard Thermoelement Connector Duplex-Sockel JS-E-FD Typ E JIS
Robuste glasgefüllte Polyester-Körper. Kontakte werden polarisiert, um eine falsche Verbindung zu verhindern
Spezifikationen
| Allgemeine Beschreibung | Plugs fitted with solid thermocouple pins. Rugged glass filled polyester bodies, suitable for industrial applications. |
|---|---|
| Thermoelementtyp | E JIS |
| Steckertyp | Duplex Socket |
| Steckergröße | Standard |
| Farbe | Violet |
| Maße | See Schematic Drawing (Product Literature Tab) |
| Max. Temperatur | 220°C |
| +Positiver Kontakt | Nickel Chromium |
| -Negativer Kontakt | Copper Nickel |
| Normen erfüllt | BS EN 50212:1997. RoHS |
3D Animation
3D Animation Standard Thermocouple Connector Duplex Socket from Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
