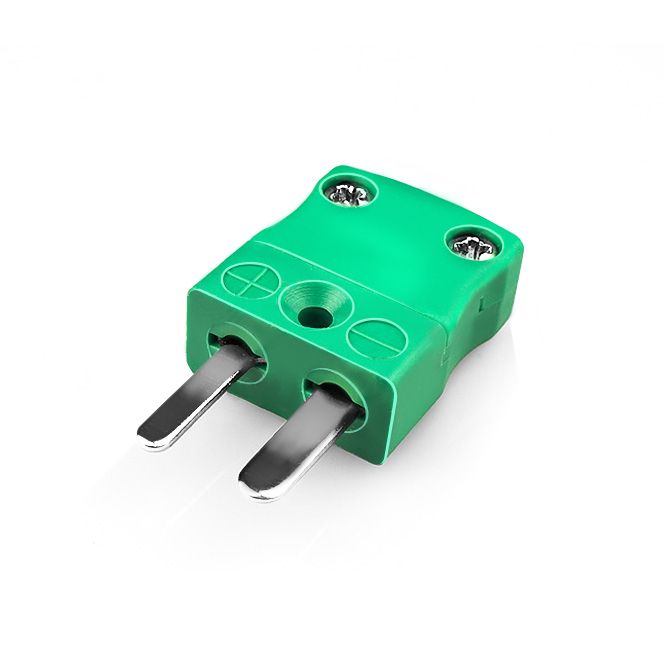

Miniatur-Thermoelement-Stecker IM-K-M Typ K IEC
Währung ändern
- Buy 2 - 9 for 3,40 € 2,83 € each
- Buy 10 - 99 for 2,89 € 2,41 € each
- Buy 100+ for 2,71 € 2,26 € each
Miniatur-Thermoelement-Steckverbinderstecker IM-K-M Typ K IEC
Mit flachen Stiften, die dem Thermoelementtyp entsprechen und ideal fr den allgemeinen Gebrauch geeignet sind, sind alle Kontakte polarisiert, um eine korrekte Verbindung zu gewhrleisten. Diese Steckverbinder nehmen Thermoelementkabel mit einem Durchmesser von bis zu 4 mm auf.
| Allgemeine Beschreibung | Ideal for general purpose use. Contacts are polarised to ensure correct connection. |
|---|---|
| Thermoelementtyp | K IEC |
| Steckertyp | Plug |
| Steckergröße | Miniature |
| Farbe | Green |
| Max. Temperatur | 220°C |
| Stifte | Flat Pins |
| +Positiver Kontakt | Nickel Chromium |
| -Negativer Kontakt | Nickel Alloy |
| Normen erfüllt | BS EN 50212:1997. RoHS |
3D Animation of Miniature IEC Thermocouple Connector Plug From Labfacility
Miniature Thermocouple Plug IEC *Miniature connector with flat plug pins. *Contacts are polarised to prevent incorrect connection. *Connectors will accept thermocouple cable up to 4mm diameter. *Cable clamps available for securing cable to plugs. *Max temperature 220 deg C. About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
